Flame arresters

Maximum safety with minimal pressure loss

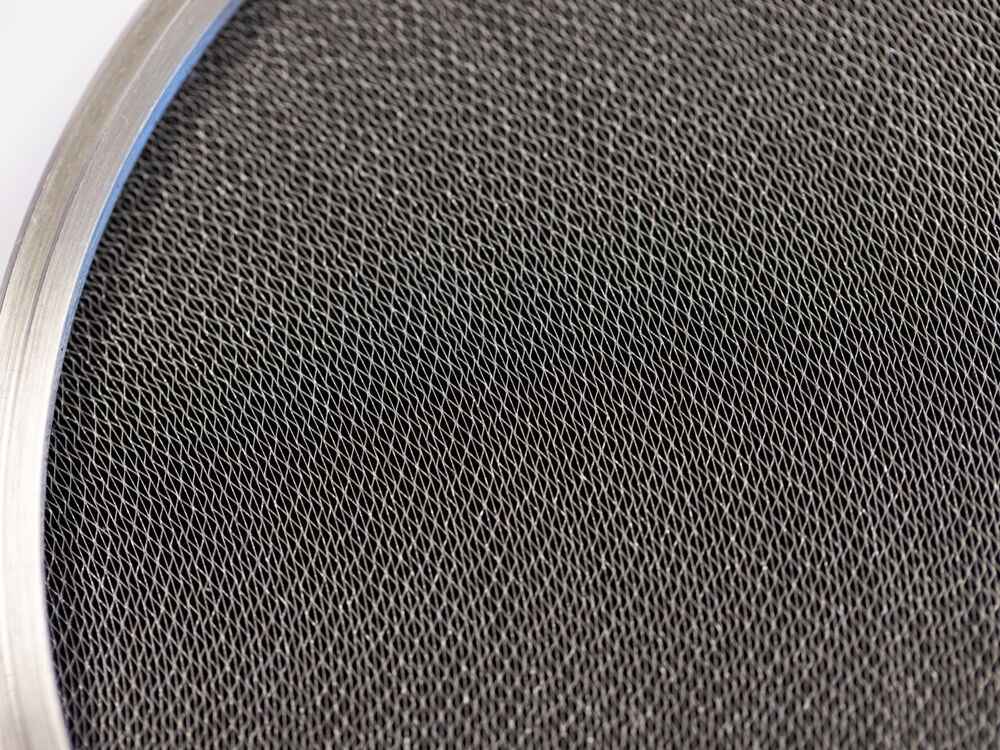

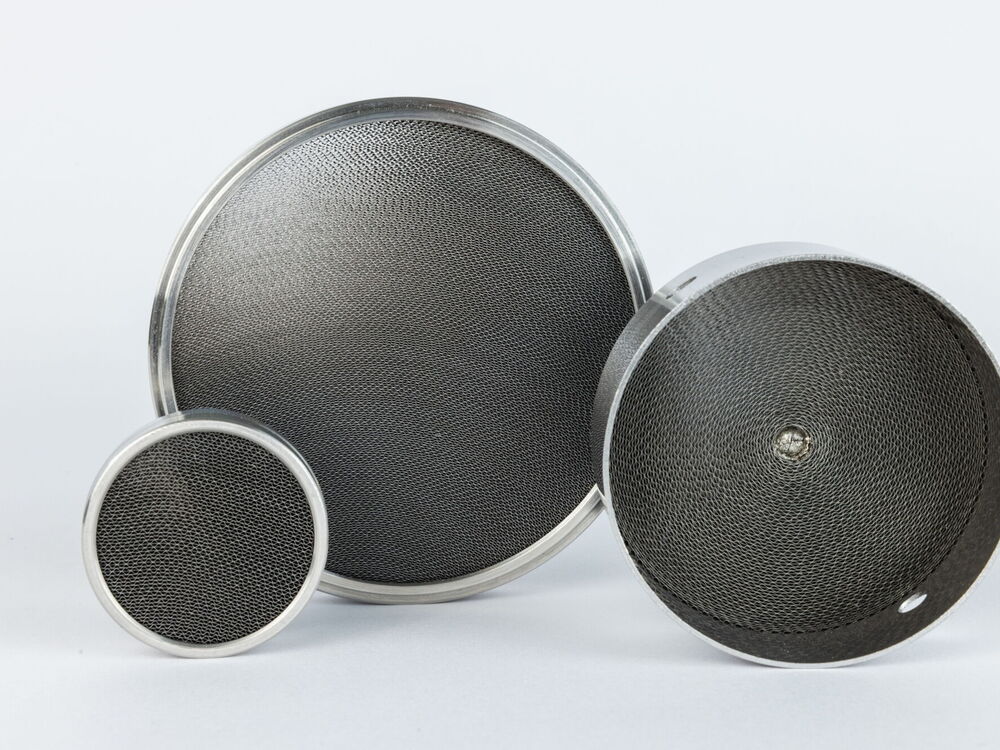

Oberland Mangold flame arresters are made from high-alloy, corrosion-resistant metal foil strips and, thanks to a precisely adjusted gap width, offer maximum safety with minimal pressure loss. They are used in areas where explosive gas-air mixtures occur, such as marine petrol engines, combined heat and power plants and tank installations. In hydrogen applications, too, our flame arresters offer the highest safety through specially adapted gap widths.

Maximum safety with minimal pressure loss

Areas of application

  • Chemical industry
  • Oil and gas industry
  • Food and pharmaceutical industry
  • Biogas plants
  • Refineries
  • Pharmaceutical industry
  • Burner and heating systems
  • Exhaust and venting systems
  • Engines and gas turbines
  • Explosion-protected areas

Explosion groups

Classification of gases according to their maximum experimental safe gap into the respective explosion groups per EN ISO 16852, NEC.

Certification is carried out by the customer

Explosion groups
Explosion groupMax. experimental safe gap [mm]Gas mixture
IIA1*≥ 1.14
IIA> 0.90
IIB1≥ 0.85
IIB2≥ 0.75
IIB3≥ 0.65
IIB≥ 0.5
IIC< 0.5

Classification of gases according to their maximum experimental safe gap into the respective explosion groups per EN ISO 16852, NEC. Certification is carried out by the customer.
